Velux Skylight Specification

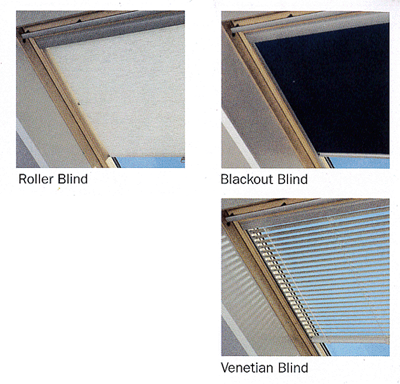

VELUX Sunscreenings
To complete your roof window installation, VELUX offers a complete range of sunscreening accessories, to match individual needs for regulating light and heat. In addition they also provide privacy and decoration. All blinds are designed for easy installation and can be fitted in a matter of minutes. Whatever your needs, you will find a functional and attractive solution among the products.
|
Model |
Roof window size (width x height)mm |
Opening hole size (width x height)mm |
|
GGL CK04 |
550 x 980 |
570 x 1000 |
|
GGL MK04 |
780 x 980 |
800 x 1000 |
|
GGL MK06 |
780 x 1180 |
800 x 1200 |
|
GGL MK08 |
780 x 1400 |
800 x 1420 |
|
GGL SK06 |
1140 x 1180 |
1160 x 1200 |
|
GGL SK08 |
1140 x 1400 |
1160 x 1420 |
VELUX Electrical Controls
VELUX offers a unique system for electric operation of VELUX GGL roof windows. The system is ideal where the windows are out of reach or where a higher level of comfort is required.

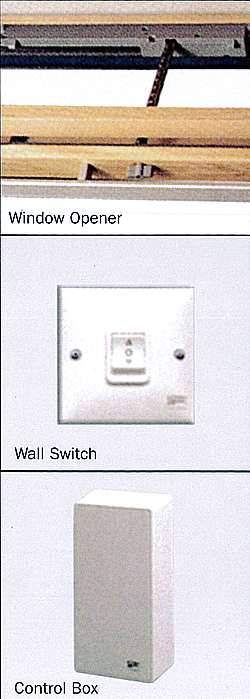

The system consists of an opener and a wall switch together with a control box. The switch is mounted on the wall at a position suitable for operating the window.
The control box is connected to the switch and the opener via a cable (8m) as shown in the drawing.
The cable may be hidden in the wall, and the control box may be placed at an unnoticeable position.
On installation of the system, it is possible – by pressing the wall switch – to open the window up to 22cmm close it or set it any position at your own choice.
VELUX Manual Controls
CORD ZAZ 010
Supplied with a 5 meter cord for operating windows out of reach.
CORD ZAZ 0410
Supplied with a 5 meter cord for operating blinds out of reach.
ROD ADAPTER Z0Z 040
Fitted to the roller blind, this adapter allows rod control.
RODS ZCT 200/100
The rod ZCT 200 is telescopic and is adjusted in lengths from 100cm to 183cm. The rod ZCT 100 is and extension for ZCT200 and length is 100cm.
